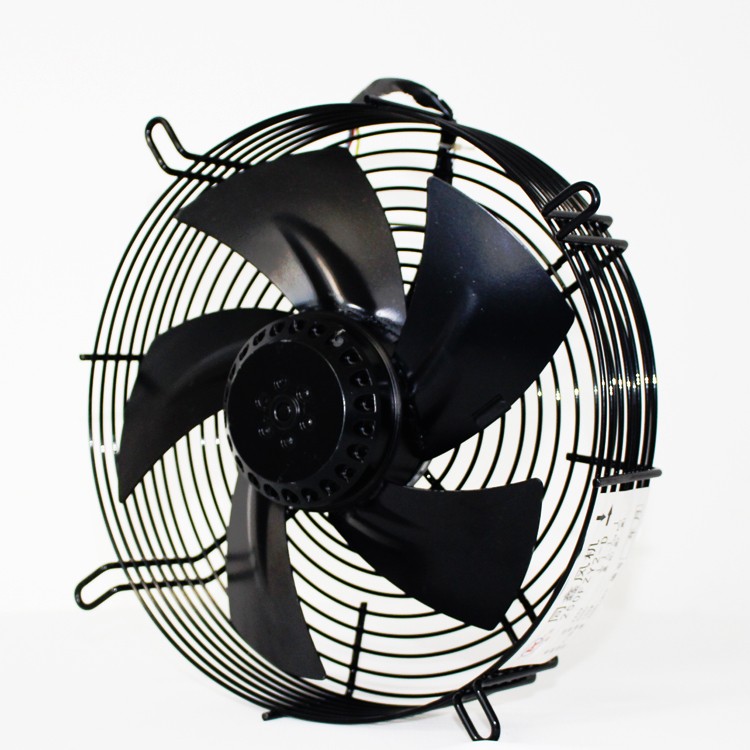

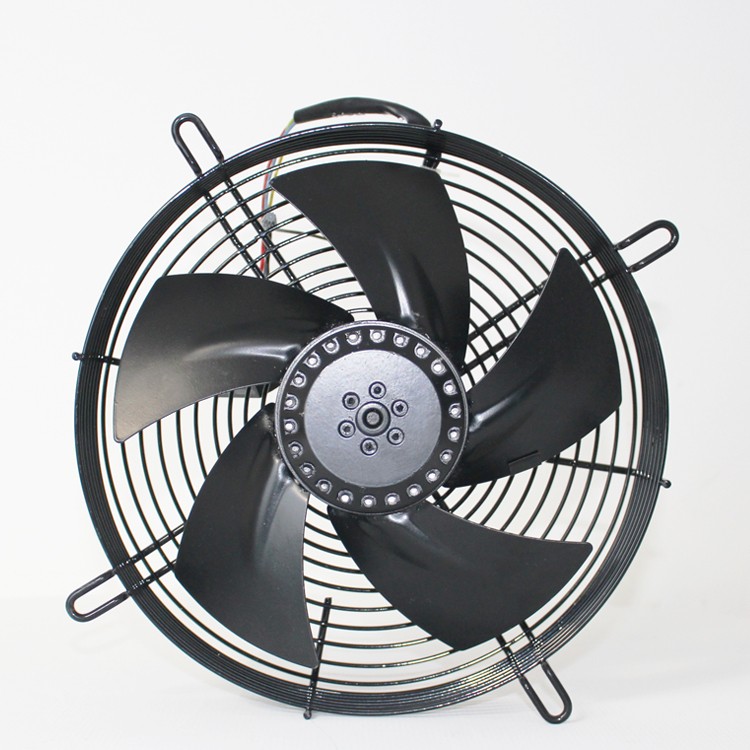

8inch High Speed Ac External Rotor Fan

200FZL   External Ac Fan

Mounting: Wall fan/Free standing/Duct fan

Model Number: TX200FZL

Product name: EXTERNAL ROTOR AC FAN

Size: 200X200X87mm

Power supply: 220V/380V

Bearing Type: Ball Bearing

Material: Metal Blade/Aluminum Frame

Motor: Run And External Rotor Induction Motor

Current: 0.27~0.42A

Noise: 55~66DB(A)

200FZL AC Weight: 1500/1600g

Power: 80W

Air Volume: 618~760CFM

200FZL AC Speed: 2500~2700RPM

Certification: CE,ISO9001;2008

After-sales Service Provided: No overseas service provided

200FZL AC Fan Life: 30000 hrs

Warranty: 12 months

Application: welding machines, medical, instrumentation, chassis, cabinets, etc.
