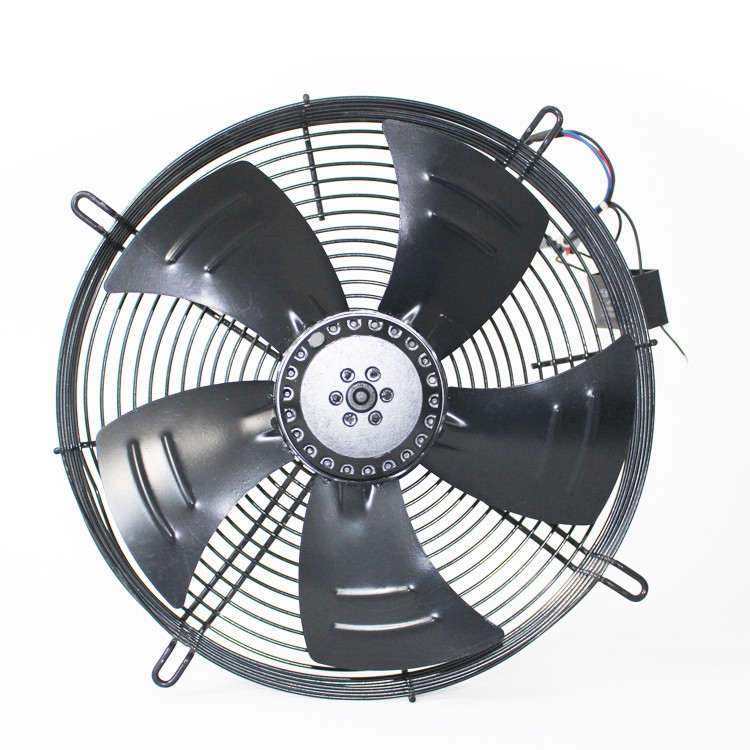

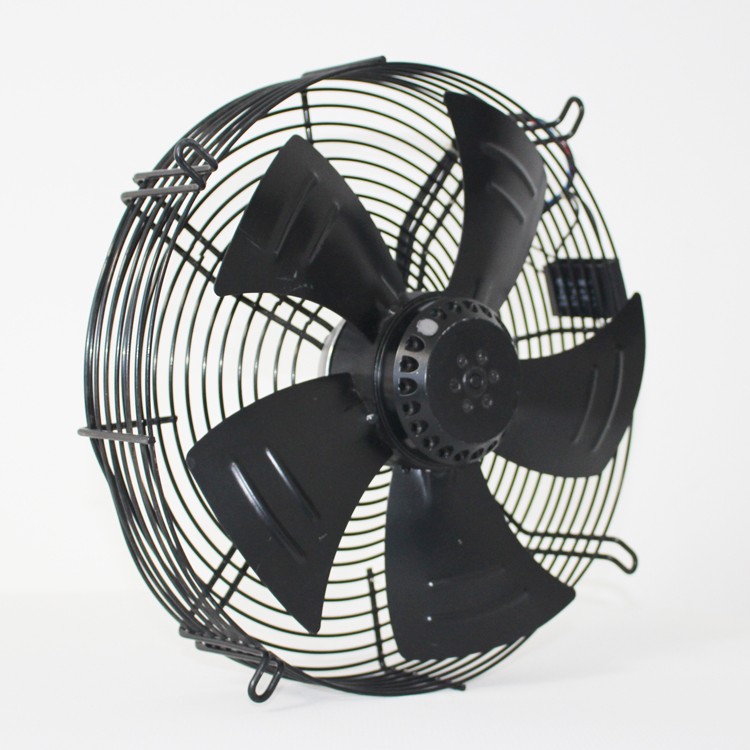

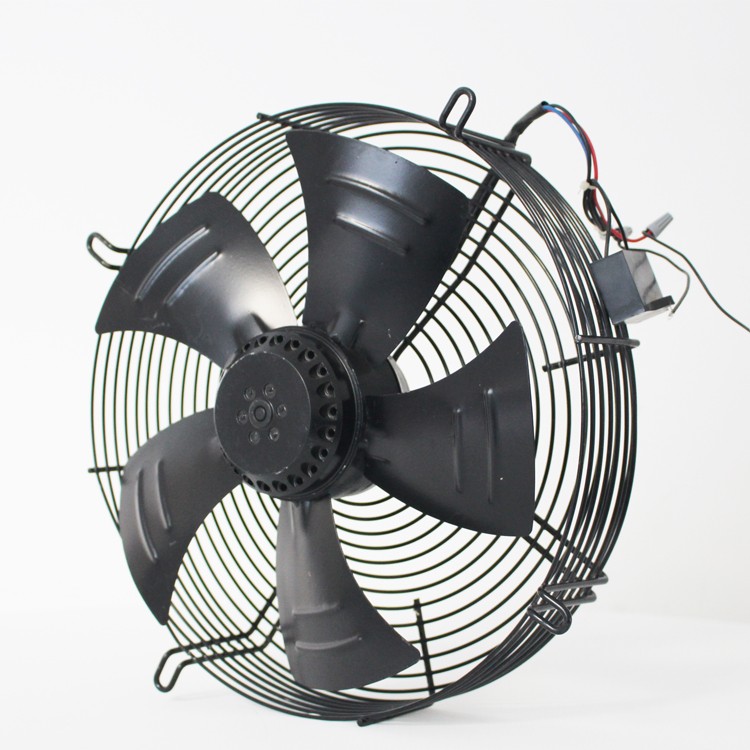

25inch Industrial Exhaust External Rotor Fan

630FZL   External Ac Fan

Mounting: Wall fan/Free standing/Duct fan

Model Number: TX600FZL

Product name: EXTERNAL ROTOR AC FAN

Size: 630X630X167mm

Power supply: 220V/380V

Bearing Type: Ball Bearing

Material: Metal Blade/Aluminum Frame

Motor: Run And External Rotor Induction Motor

Current: 1.6~2.5A

Noise:75~78DB(A)

630FZL AC Weight: 16000g

Power: 560~800W

Air Volume: 5400~5589CFM

630FZL AC Speed: 1300~1500RPM

Certification: CE,ISO9001;2008

After-sales Service Provided: No overseas service provided

630FZL AC Fan Life: 30000 hrs

Warranty: 12 months

Application: welding machines, medical, instrumentation, chassis, cabinets, etc.
